FMA Modular Integrated Railink Set-Pre order

$399.9
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    NOTICE: Shipment will be arranged from 20th April


    The FMA RAIL-LINK is a system that integrates mounting and power into a scalable headborne platform. It seamlesslyintegrates compatible, battery-free accessories through a centralized battery pack without the need for cable
    management


    Features    :
    • Power port  for running NVG
    • IPX7 waterproof level

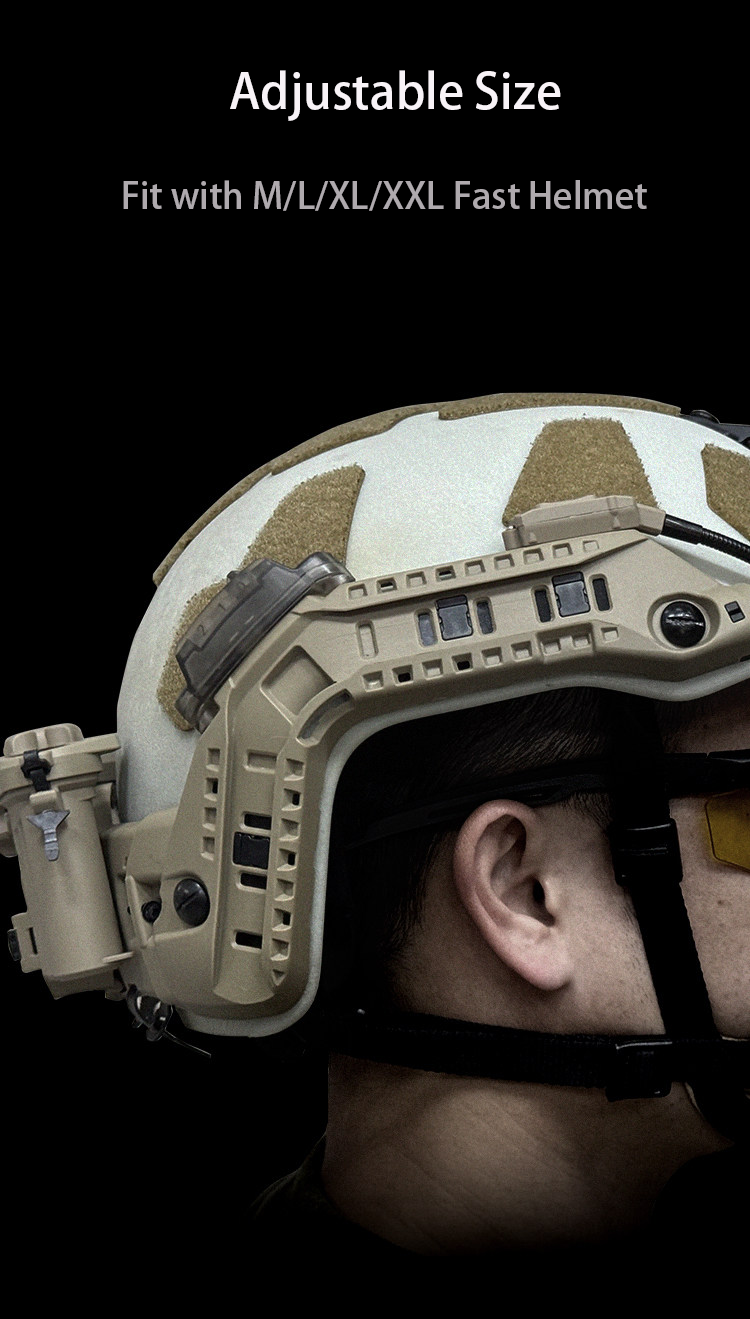

    • Adjustable to fit with M/L/XL/XXL FAST helmet.
    • Battery life up to 8 hours under full high power model.

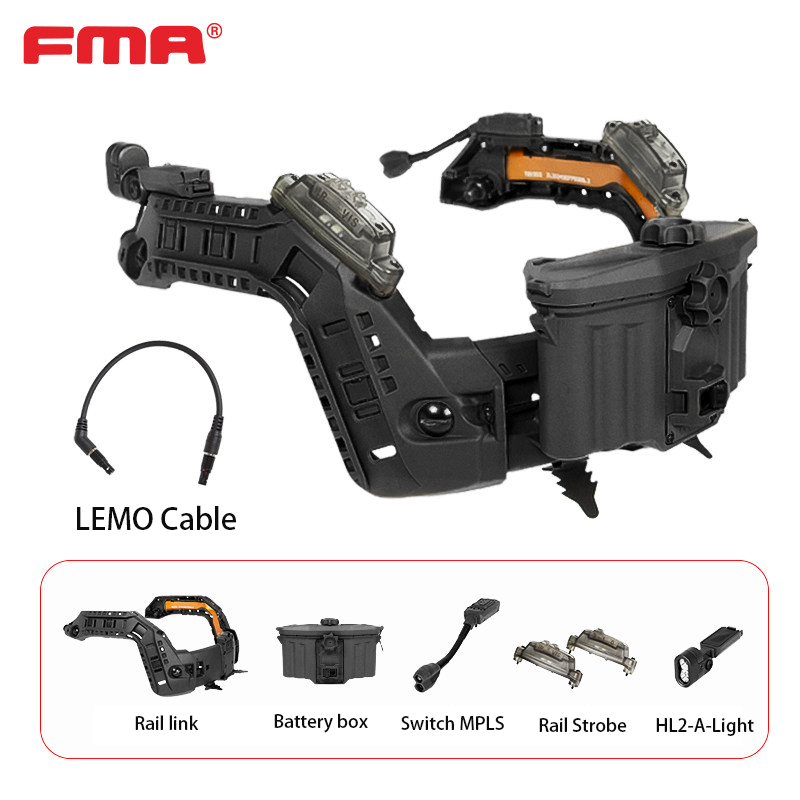

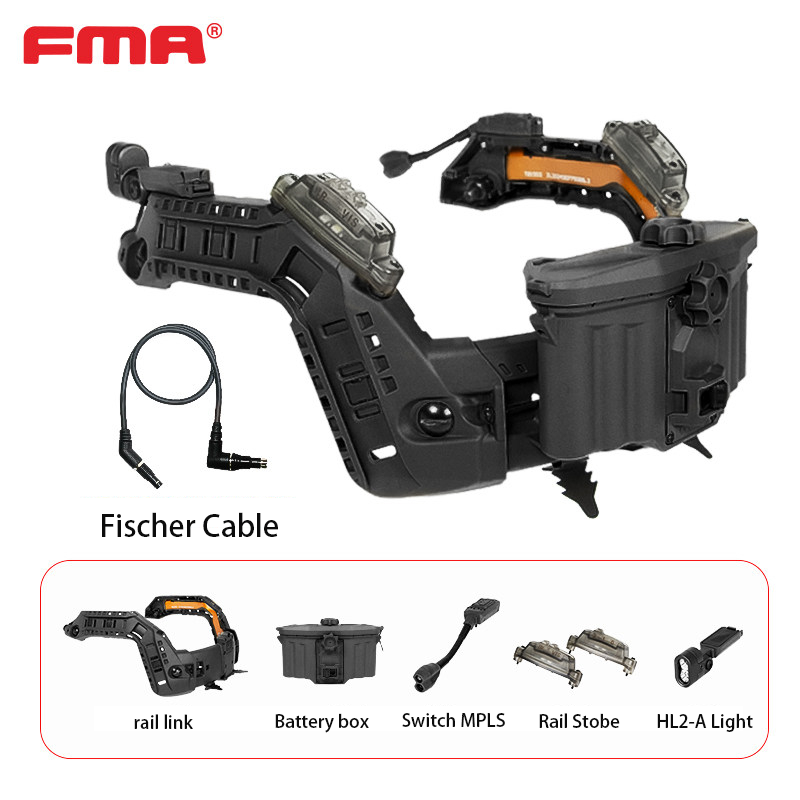

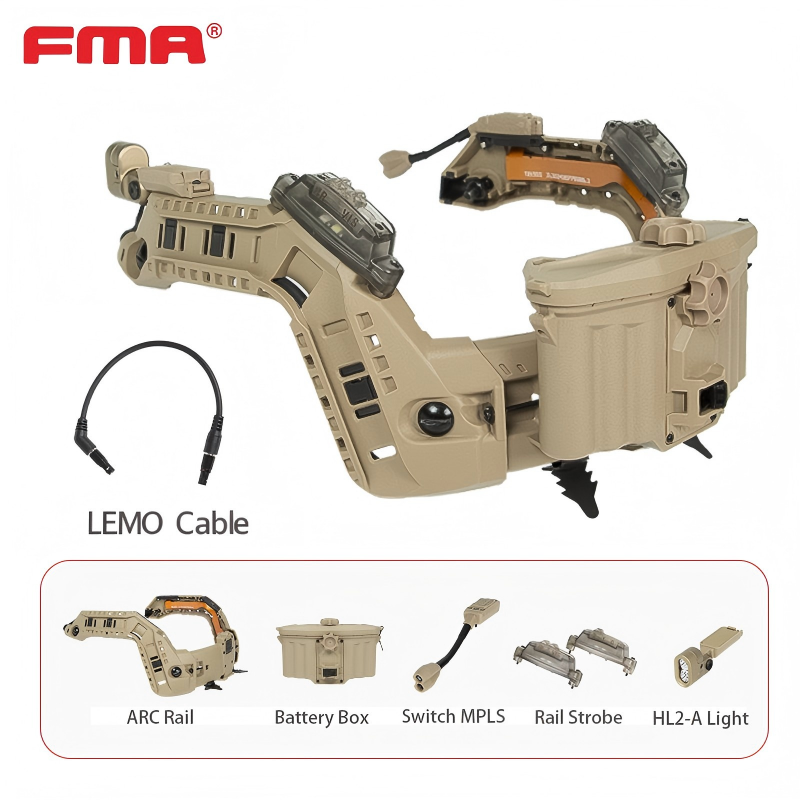

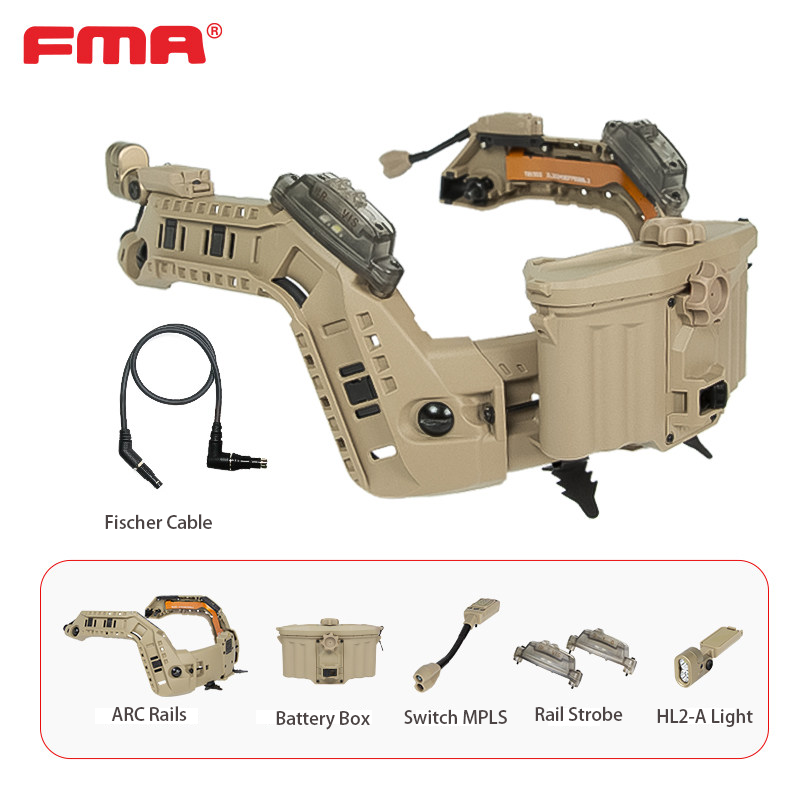

    Package includes below items
    • ARC Rails  X1
    • Switch MPLS X1
    • Battery Box X1(Batteries are not included)

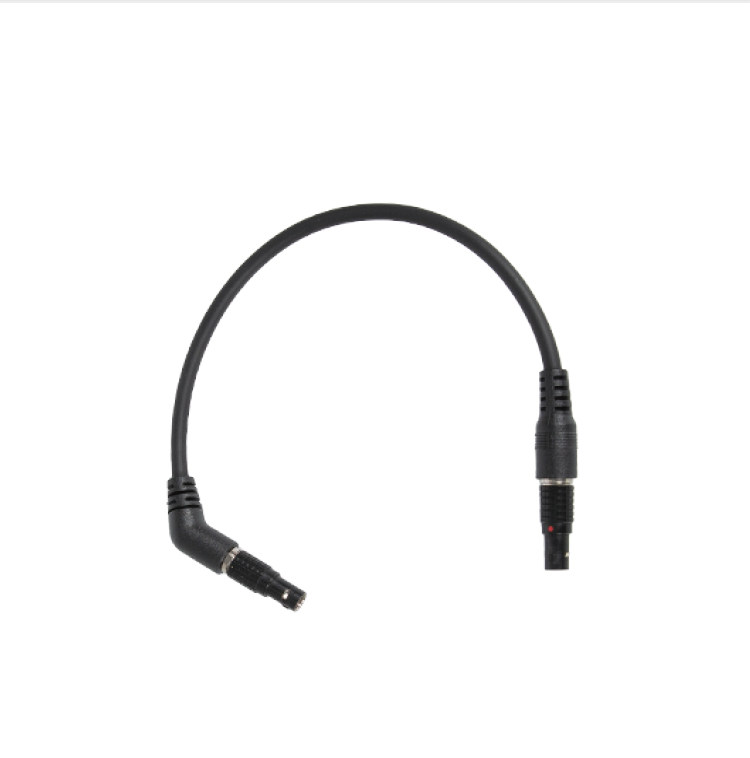

    • Fischer cable/LEMO cable  X1
    • HL2-A Light X1
    • HEL-STAR Rail Strobe  X1 Set

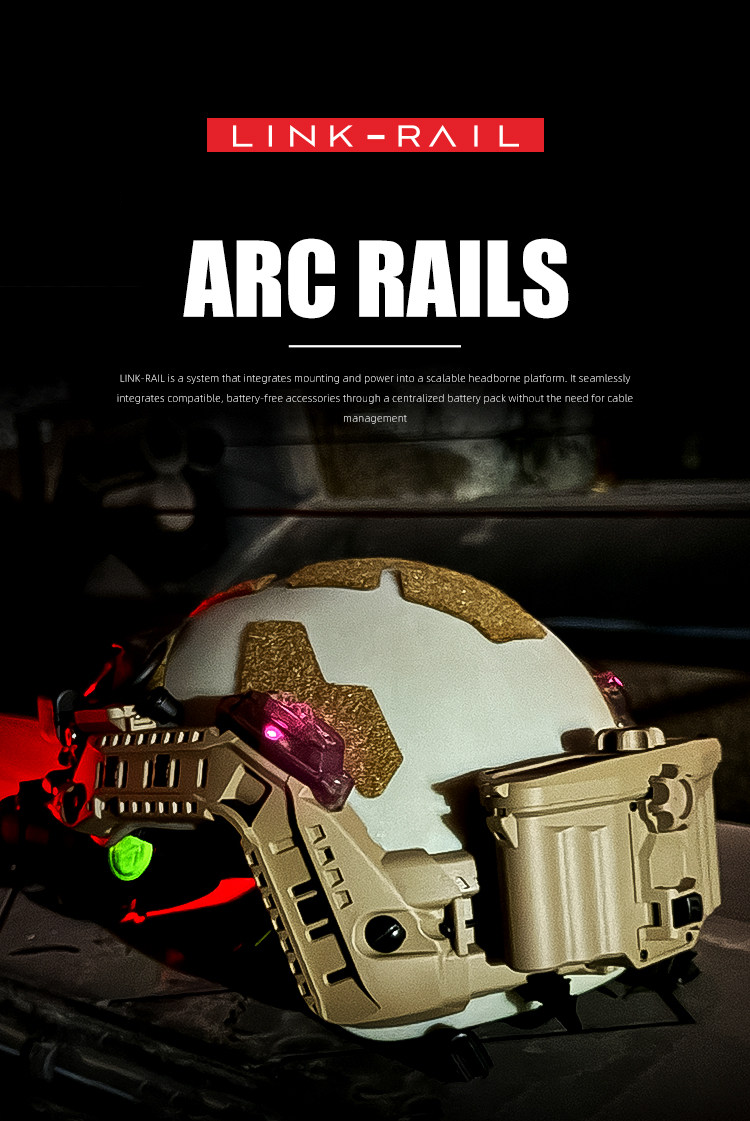

    ARC Rail:
    The rail interior utilizes a flexible FPC ribbon cable with a fully copper-clad shielded circuit for protection. The electrical box connects to the rail via a contact point interface, transmitting power and communication signals through the ribbon cable to various device interfaces on the rail, thereby supplying power and communication to connected devices.
    • Operating Temperature: -20°C to 40°C
    • Electrical Box Input Voltage: 3.3V
    • Device Interface Output Voltage: 3.3V
    • Device Interface Protection Rating: IPX7
    • NVG/VAS Device Support: Requires an additional external power cable
    • Weight: 215g (excluding devices)

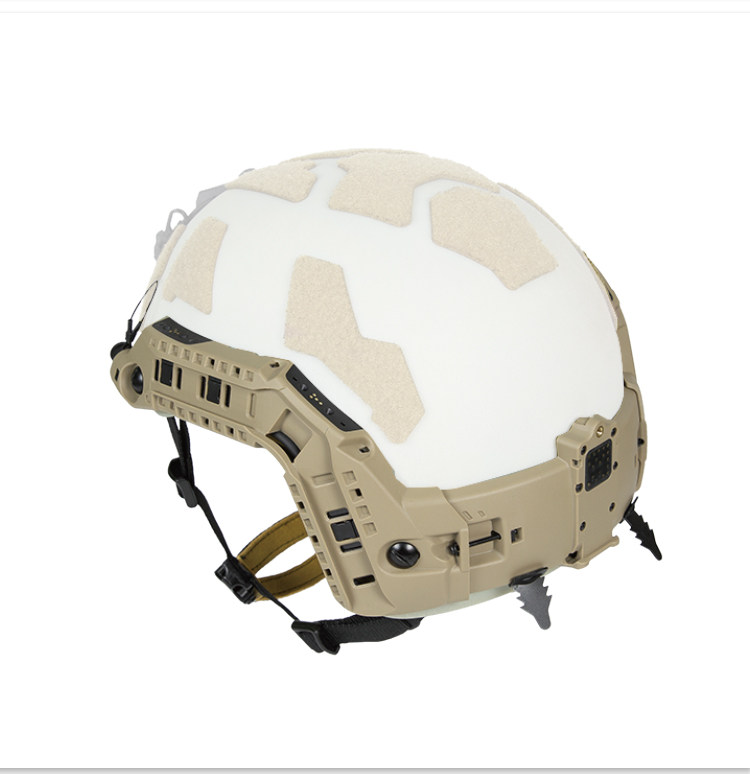

    • Compatible Sizes: M/L/XL/XXL FAST Helmet Systems
    • Color Options: Black, Sand
    • Material: Nylon

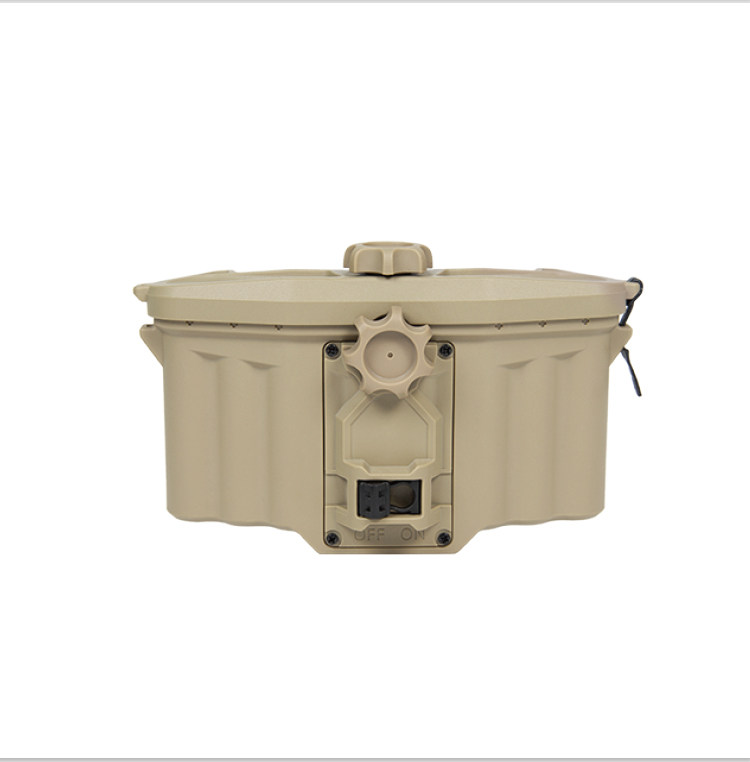

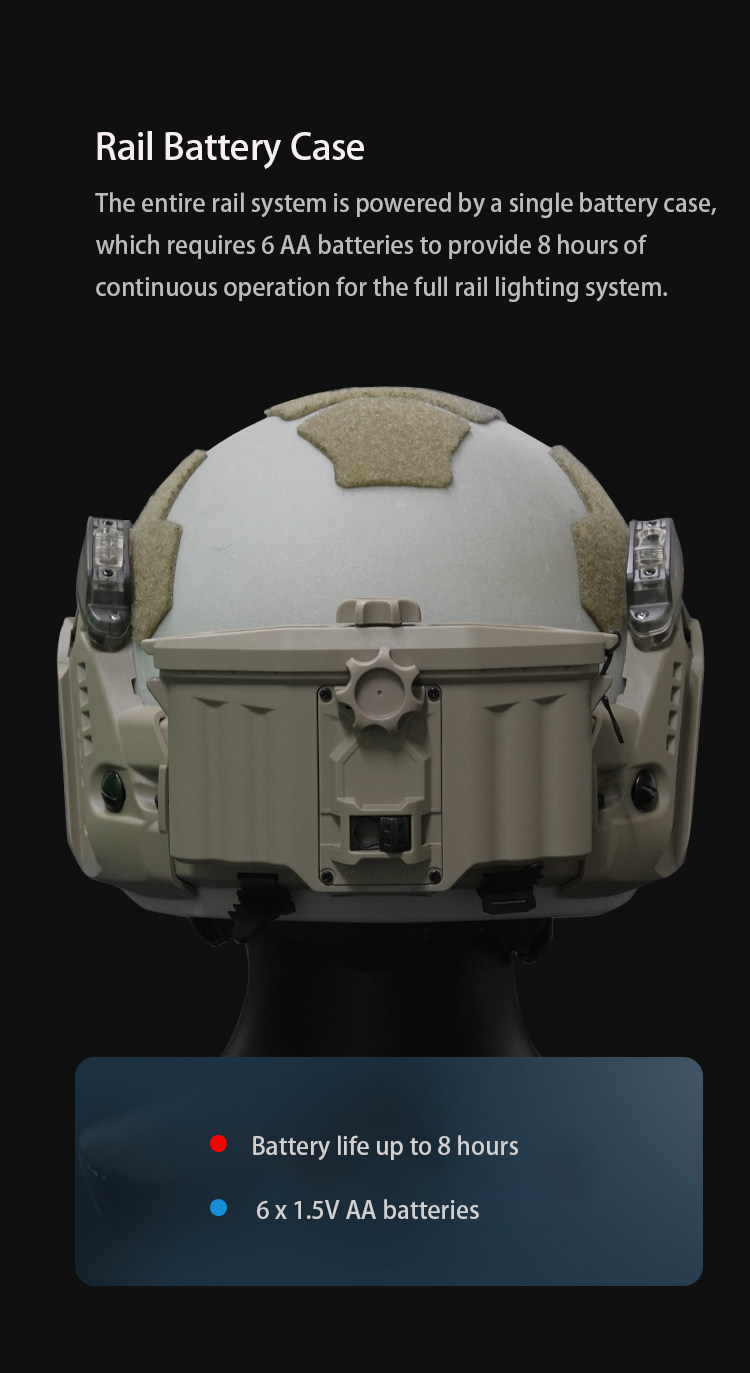

    Battery Box:

    The battery box is specifically designed for rail systems to serve as a power source device. It is secured to the rail via a contact interface and screws. Powered by 6 AA batteries, the electrical box supports multiple battery configurations for power supply and can operate with 2 or 4 batteries in emergency situations.
    • Operating Temperature: -20°C to 40°C
    • Output Voltage: 3.3V
    • Power: 9W
    • Battery: 1.5V AA / 6 cells
    • Full Power Runtime: 8h
    • Sliding Switch: OFF / ON
    • Unit must be restarted after battery replacement
    • Battery Compartment Protection: IPX7
    • Weight: 165g (excluding batteries)
    • Color Options: Black, Sand
    • Material: Nylon

    Attention:
    • Device automatically powers off when battery is low
    • Unit must be restarted after battery replacement
    • Ensure the device is switched off when not in use

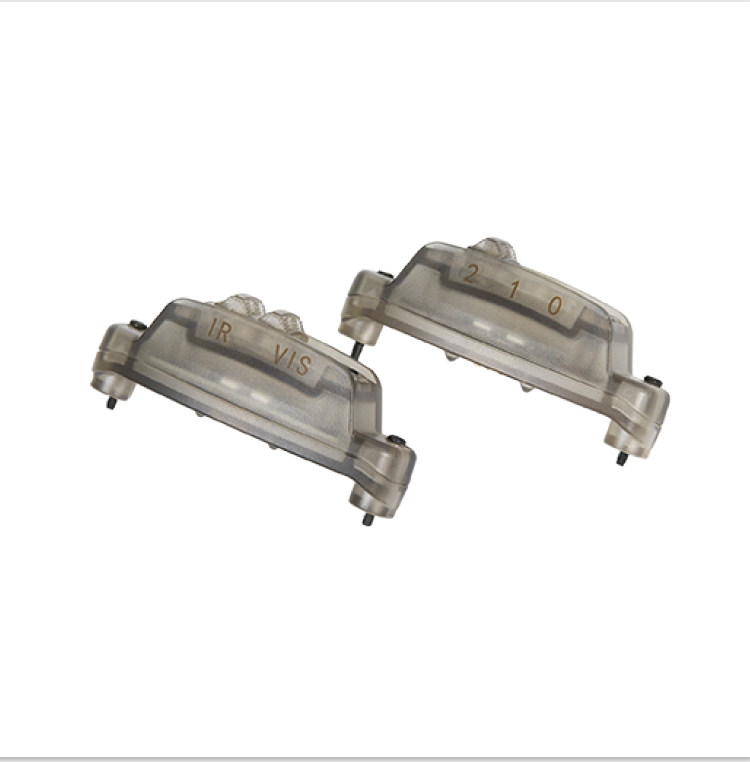

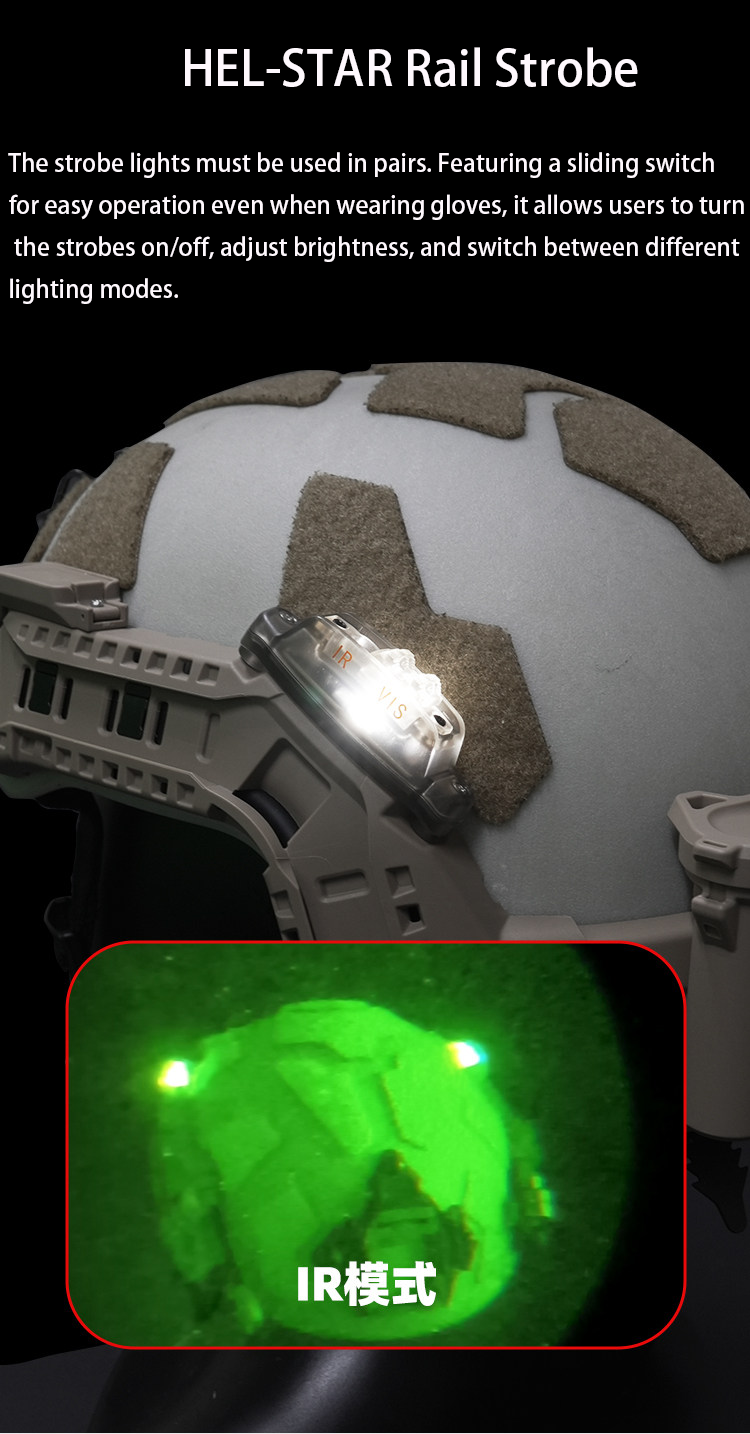

    HEL-STAR Rail Strobe:

    The device is installed on both sides of the helmet rail, featuring synchronized strobe markers in both white light and infrared, ensuring clear visibility at the top of the helmet and reducing hazards from obstacles. The survival strobe is specifically designed for integration into the rail system, drawing power from it without requiring a separate power supply. With a lightweight and compact design that occupies minimal space, it can be installed on either the left or right side of the rail. Synchronization between multiple survival strobes is achieved through the communication function of the rail system.
    The device offers four settings: high and low intensity white light strobe, and high and low intensity infrared strobe. It utilizes a dual sliding switch system—one side toggles between white light (VIS) and infrared (IR) modes, while the other controls intensity (low or high).
    • Operating Temperature: -20°C to 40°C
    • Voltage: 3.3V
    • LED Strobe Current: Low – 3mA, High – 30mA
    • IR Strobe Current: Low – 3mA, High – 30mA
    • Device Protection Rating: IPX7
    • Weight: 12g (per unit)
    • Color Option: Translucent Black
    • Material: ABS
    Operation:
    • Power Mode Sliding Switch: OFF – LOW – HIGH
    • Light Mode Sliding Switch: IR – VIS (Infrared Strobe – White Light Strobe)

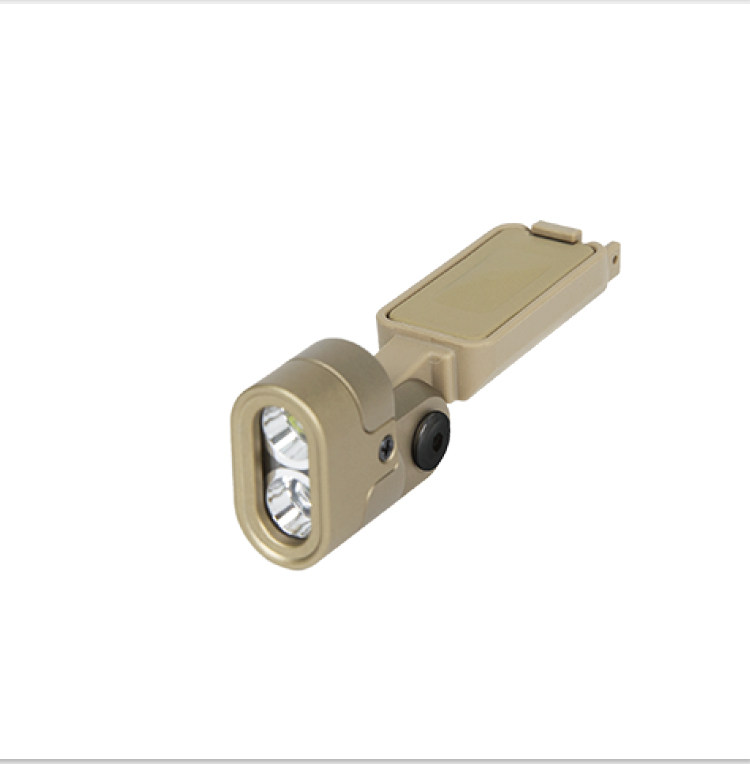

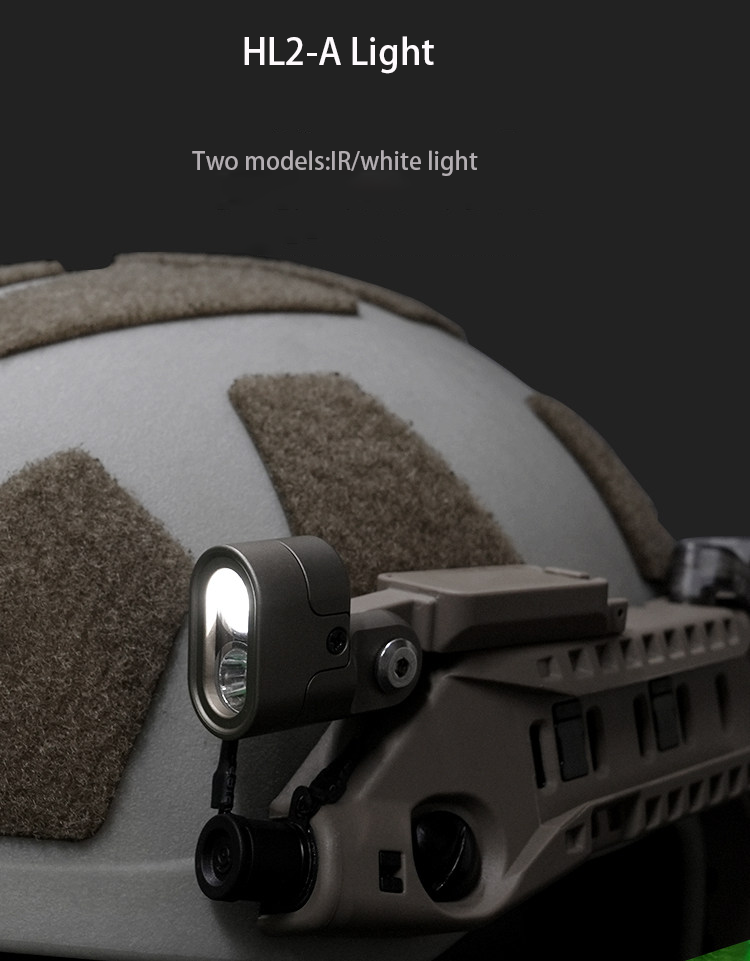

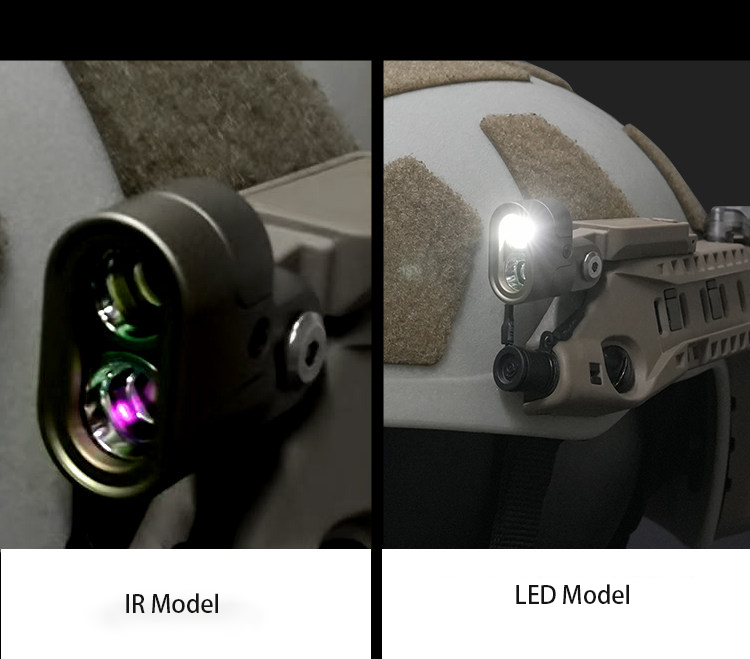

    HL2-A Light:

    • Operating Temperature: -20°C to 40°C
    • Voltage: 3.3V
    • LED Current: Low – 60mA, High – 300mA
    • LED Luminous Flux: Low – 10 lm, High – 60 lm
    • IR Power Output: Low – 10 mW, High – 40 mW
    • IR Current: Low – 60mA, High – 300mA
    • Device Protection Rating: IPX7
    • Weight: 29.5g
    • Color Options: Black, Sand
    • Materials: Housing – Nylon, Light Head – AL6061

    Control Logic (Single‑Button Operation):
    IR Mode:
    • Short press (< 3 seconds): Cycles through Low → High → OFF.
    • Short press (≥ 3 seconds) in any state: Turns OFF.
    • Long press in any state: Switches to LED Low mode.
    LED Illumination Mode:
    • A. Long press: Turns ON to Low → Short press (< 3s) switches to High → Next short press turns OFF.
    • B. From High: Long press switches to Low → Short press (< 3s) returns to High.
    • C. Short press (≥ 3 seconds) in any state: Turns OFF.

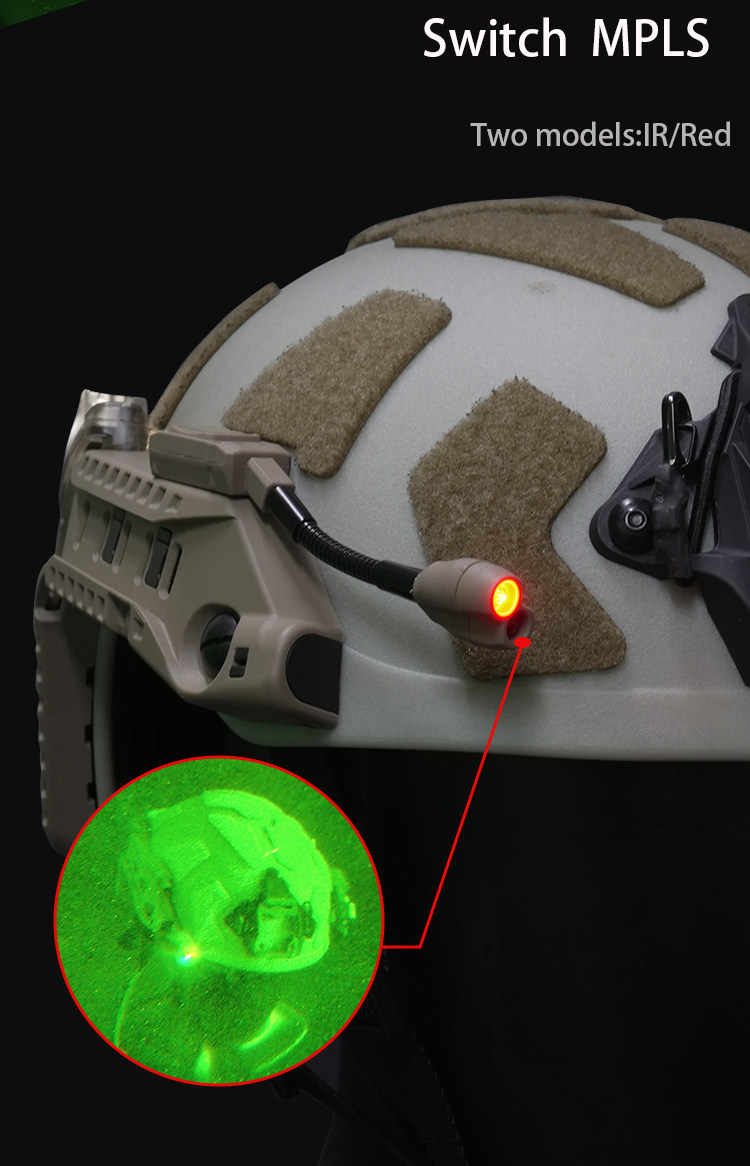

    Switch MPLS:

    • Operating Temperature: -20°C to 40°C
    • Voltage: 3.3V
    • Red Light Current: Low – 10mA, High – 50mA
    • Red Light Luminous Flux: Low – 1 lm, High – 3.5 lm
    • IR Current: Low – 10mA, High – 50mA
    • IR Power Output: Low – 5 mW, High – 20 mW
    • Device Protection Rating: IPX7
    • Weight: 18g
    • Color Options: Black, Sand
    • Material: Nylon

    Control Logic (Single‑Button Operation):
    IR Mode:
    • Short press (< 3 seconds): Cycles through Low → High → OFF.
    • Short press (≥ 3 seconds) in any state: Turns OFF.
    • Long press in any state: Switches to Red Light Low mode.
    Red Light Mode:
    • A. Long press: Turns ON to Low → Short press (< 3s) switches to High → Next short press turns OFF.
    • B. From High: Long press switches to Low → Short press (< 3s) returns to High.
    • C. Short press (≥ 3 seconds) in any state: Turns OFF.
